Colloid Mill

Designed for continuous wet or dry granulation. Beaters & scraper blades made of SS 304 (SS 316 Optional)

Easy to dismantle and clean Beater drive equipped with reversible switch. Castor wheels provided for mobility. Flameproof electrical components can be provided at extra cwt

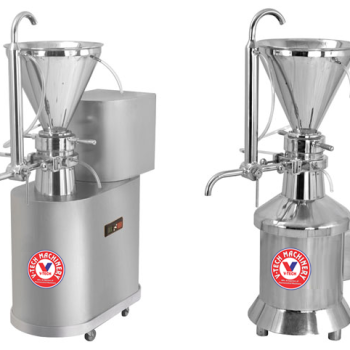

colloid-mill-big

Salient Features:

  • All contact parts are made out of SS 304 (SS 316 on demand at extra charges). No casting are used for avoiding contamination problems.
  • Coupling provided between motor shaft and rotor shaft for ease in maintenance – Vertical Model.
  • Three oil seals between the motor and the processing chamber to prevent liquid going in the motor winding, resulting in the burning of the motor.
  • Modified design of semi concave teeth in rotor and stator reduced motor HP and gives better performance in size reduction without damaging the product.
  • Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator. This unique design provides smooth and consistence all round performance and long life of rotor and stator.
  • Three-way cock for draining and re-circulation of liquids provided as standard.
  • Contact parts can be easily dismantled for cleaning.
  • Special design facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation.
  • Flameproof motor and flameproof rotary switch can be provided on request at extra cost

Technical Specifications

TECHNICAL SPECIFICATION
Model VMCM - 5 (Vertical) VMCM - 5 (Horizontal)
Output * 120 to 12000 Kgs. / Shift. 120 to 12000 Kgs. / Shift.
Particle Size Reduction ** 5 to 10 Microns. 5 to 10 Microns.
Hopper Capacity 15 Liters. 15 Liters.
Motor 3 Hp / 2850 RPM / 3 Ph 3 Hp / 2850 RPM / 3 Ph
* Depending upon viscosity of material. ** Depending upon material.
